Description

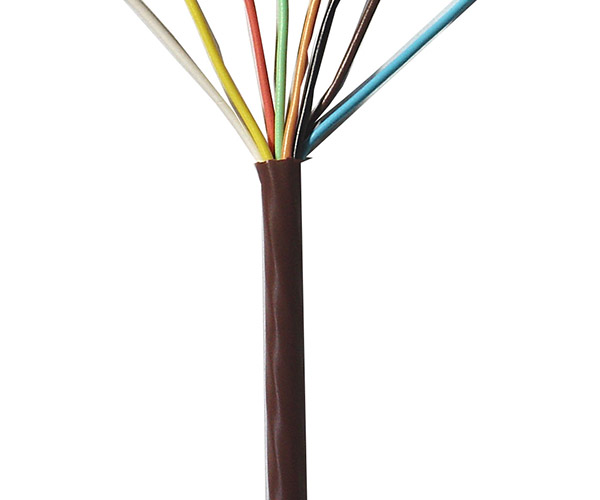

The Unshielded Multi Conductor Cable is suitable to use within Commercial Audio Systems, Control and Instrumentation purpose. The cable is constructed with PE insulation, Nylon Rip Cord
and PVC or LSZH outer jacket.
CABLE CONSTRUCTION
| Conductor | Bare Copper |
| Insulation | PE |
| Rip Cord | Nylon |
| Outer Jacket | PVC / LSZH |
| Jacket Colour | Grey |
PHYSICAL CHARACTERISTICS
| CHARACTERISTIC | VALUE |
| No. of Conductor | 2-12core |
| Conductor Size | 12Awg 14Awg 16Awg 18Awg 22Awg |
| Insulation Thickness | 0.18 mm (can be designed ) |
| Insulation Diameter | 2.10 mm (can be designed ) |
| Jacket Thickness | 0.45 mm(can be designed ) |
| Jacket Diameter | 5.40 mm(can be designed ) |
| Max. Recommended Pulling Tension | 522 N |
| Min. Bending Radius Minor Axis | 44 mm |
| Operating Temperature | -10°C to +75°C |
ELECTRICAL CHARACTERISTICS
| CHARACTERISTIC | UNIT | VALUE |
| Nom. Capacitance | pf/m | 77.1 |
| Nom. Conductor DCR | Ω/km | 13.7 |
| Max. Recommended Current @ 25°C | Amps | 6.25 |
| Max. Operating Voltage UL | V/min | 300 |
MECHANICAL CHARACTERISTICS
| CHARACTERISTIC | VALUE |
| Test Material | PVC or LSZH |
| Before Tensile Strength (Mpa) | ≥13.8 |
| Aging Elongation (%) | ≥100 |
| After Tensile Strength (Mpa) | ≥10.35 |
| Aging Elongation (%) | ≥75 |
| Cold Bend (-20±°C x 4 hrs) | No Crack |
INSULATION COLOUR CODE
| INDIVIDUAL CORE | COLOUR |
| Core 1 | Black |
| Core 2 | Red |
–
–
