Description

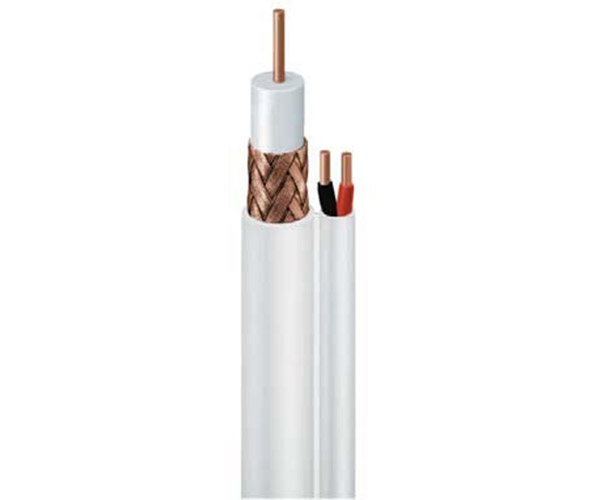

RG6 95% BRAID WITH 18AWG/2C
1) Description
18 gauge (1.02mm) solid bare copper center conductor;
gas expanded polyethylene dielectric; shield of bare aluminum braid wire; with
18AWG/2C; jacket of polyvinylchoride. Nominal O.D. 6.91mm.
2) Physical Dimensions
Center Conductor:———-1.02+0.01mm Solid Bare Copper
Dielectric:——————–4.32+0.05mm Foam PE
Braid Coverage:————-95%X16X7X0.16+0.005mm CU Wire
Jacket:————————6.10+0.05mm PVC
Jacket Thickness:———–0.45+0.05mm PVC
18AWG/2C:—————–7X0.38+0.01mm Stranded Bare Copper
Insulation:——————–1.80+0.05mm Solid PE
Jacket (2C):——————3.80+0.05mm PVC
3) Mechanical Characteristics
Operating Temperature Range:————––20℃ To +75℃
Max. Recommended Pulling Tension: —–45 lbs
Min. Bend Radius (Install):——————-3 in.
4) Suitability
Suitability – Indoor/Outdoor:——————YES/YES
Suitability – Aerial/Burial:———————-NO/NO
5) Electrical Characteristics
Sparker Test:—————-2500 VAC
Impedance:——————75+3Ω
Capacitance:—————–52+3pF/m
Velocity of Propagation:—84%
SRL:————————–20dB (10-300MHz) 100% Sweep Tested
6) Attenuation
| Attenuation | [@68℉. (20℃)] | ||
| Frequency (MHz) | Max. (dB/100 ft) | Frequency (MHz) | Max. (dB/100 ft) |
| 1 | 0.21 | 400 | 4.46 |
| 5 | 0.60 | 700 | 5.89 |
| 10 | 0.65 | 900 | 7.47 |
| 100 | 2.04 | 1000 | 8.02 |
7) Approval:
NEC/(UL) Specification: CMR CEC/C(UL) Specification: CMR
EU CE Mark: YES EU RoHS Compliance: YES
–
–
