Description
RG214
1) Description

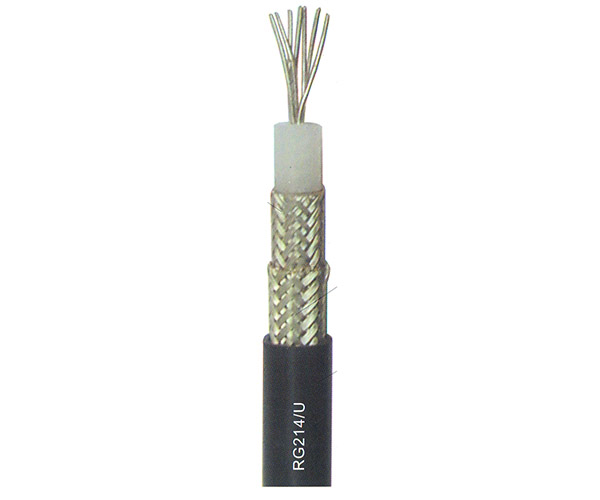

Stranded solid copper wire conductor; Solid PE dielectric; Two layers of
Copper wire braid with coverage 96% & 98%, Jacket of PVC with a overall
Diameter 10.5mm.
2) Physical Dimensions
Center Conductor: 7X0.75 Solid Copper wire
Dielectric: 7.25+0.02mm Solid PE
Braid Coverage: 96%: 144X0.16mm Copper wire
98%: 168X0.16mm Copper wire
Jacket: 10.50+0.10mm PVC
Jacket Thickness: 1.10mm
Jacket Minimum Spot: 0.80mm
3) Mechanical Characteristics
Operating Temperature Range:————––20℃ To +75℃
Max. Recommended Pulling Tension: —–76 lbs
Min. Bend Radius (Install):——————-2.5 in.
4) Suitability
Suitability – Indoor/Outdoor:——————YES/YES
Suitability – Aerial/Burial:———————-NO/NO
5) Electrical Characteristics
Sparker Test: 4000VAC
Dielectric Strength: Conductor to Shield :10000 VDC
Impedance: 50+3Ohm
Capacitance: 100+3pF/Ft (Nom.)
Velocity of Propagation: 66.0%
DCR: Conductor: 6.0 ohms/1000Ft
SRL: 15dB (10 to 300 MHz) Swept Tested
6) Attenuation
| Attenuation | [@68o F. (20o C.)] |
| Frequency (MHz) | Nom.(dB/100 ft.) |
| 50 | 1.6 |
| 100 | 2.2 |
| 500 | 4.7 |
| 900 | 8.8 |
| 1000 | 8.9 |
| 2400 | 13.7 |
| 3000 | 14.2 |
7) Approval:
NEC/(UL) Specification: CMR CEC/C(UL) Specification: CMR
EU CE Mark: YES EU RoHS Compliance: YES
–
–
