Description

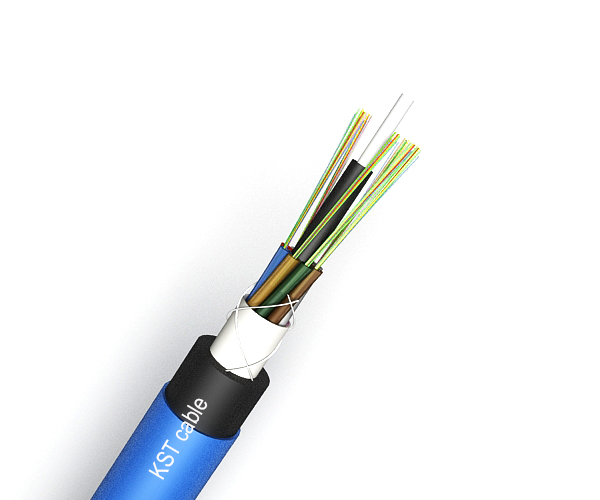

Dielectric Loose Tube Cable（GYFTY）
| Application： | |||
| ☆.Adopted to Outdoor distribution. | |||
| ☆.Adop0ted to trunk power transmission system. | |||
| ☆.access network and local network in high | |||
| electromagnetic interfering places. |
| Characteristics： | |||||
| ☆.Non-metal strength member. | |||||
| ☆.Filler protect loose tuber fiber. | |||||
| ☆.Non-metal strength has an excellent anti-electromagnet ability. |
| Technical Parameters: | ||||||||||
| Cable Count | Out sheath Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
||||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | ||
| 24 | 6.5 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 36 | 6.5 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 42 | 6.5 | 65.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 48 | 6.5 | 85.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 60 | 6.5 | 85.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 72 | 6.5 | 85.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| Denominate: |
| Optical Characteristics | ||||||||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber | ||||||
| A1b:62.5/125 | ||||||||||
| Singlemode | G.652(A、B、C、D） | B1.1:Conventional fiber | ||||||||
| G.653 | B2: Zero dispersion shifted | |||||||||
| G.654 | B1.2 :Cut-off wavelength shifted | |||||||||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber |
|||||||||
–
–
