Our company puts emphasis on the management, the introduction of talented personnel, and the construction of staff building, trying hard to improve the quality and liability consciousness of staff members. Our company successfully attained IS9001 Certification and European CE Certification of addressable fire alarm cable,afc fire alarm cable,aquaseal fire alarm cable, Standing still today and looking into the future, we sincerely welcome customers all over the world to cooperate with us.

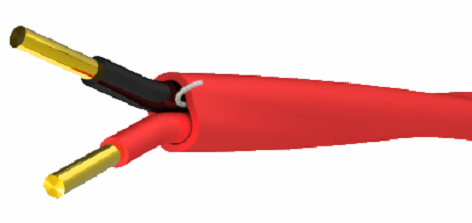

Fire Resistant instrument cable 1x2x1.5mm2 300/500V Fire alarm cable
一、 Technical parameter
| Type | 1.5mm2 x2C Fire-resistant |
| （mm²）Specification | 1×1.38mm |
| Voltage rating （V） | 300 |
| Conductor | |
| Conductor material | BC |
| Conductor size (mm) | 1/1.38±0.003 |
| Wrapping tape | |
| Wrapping tape material | Synthetic mica tape (layer two） |
| Insulation | |
| Insulation material | Ceramic polyolefin |
| Insulation diameter（mm） | 3.85±0.1 |
| Average Thickness （mm） | 0.8 |
| Insulation Identification | brown、blue |
| laying-up | |
| lay (mm) | 150±10 |
| Shield | |
| Drain wire(mm) | 1/0.8±0.003 TC |
| Shield | Single sided aluminum |
| Jacket | |
| Jacket material | LSZH |
| Jacket Diameter（mm) | 10.0±0.3 |
| Average Thickness （mm） | 1.0 |
| Electrical Properties at 20℃ | |
| conductor dc resistance (ohm/km) | ≤12.1 |
| Insulation resistance(MΩ*km) | ≥1000 |
We always believe that one, s character decides products, quality, the details decides products, quality ,with the REALISTIC,EFFICIENT AND INNOVATIVE team spirit for Fire Resistant instrument cable 1x2x1.5mm2 300/500V Fire alarm cable, Please send us your specifications and requirements, or feel free to contact us with any questions or inquiries that you may have.
–
–
