Description
Data Sheet
| P.O. # | Temp. ℃ | 20 | ||

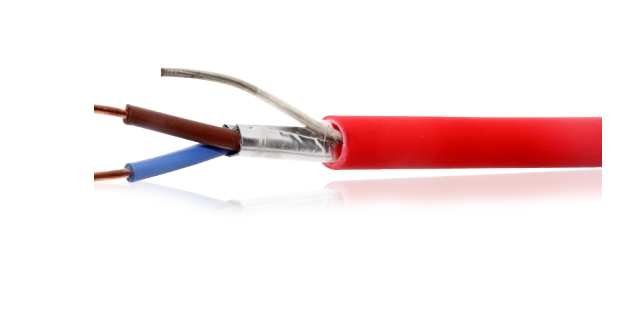

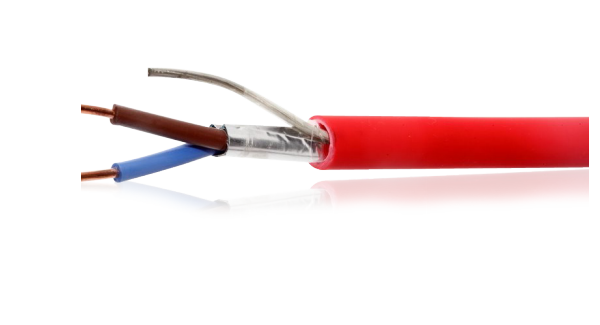

| Model # | 52-2502RD | Option | 2CORE 3CORE 4 CORE | |
| Item | Specification | Test Result | ||
| Inner Conductor | 1.76±0.005mm BC | 1.76mm BC | ||
| DC Resistance | ||||
| Insulation | 2.75±0.05mm UL PVC | 2.78mm | ||
| Insulation Ecentricity | Eligibility/Inferior | E | ||
| Shield | AL-Polyester Tape Foil | √ | ||
| Drain Wire | 0.8mm Al | 0.8mm | ||
| Jacket | 7.5±0.1mm CMR PVC | 6.35-7.45mm | ||
| Jacket Ecentricity | Y/N | N | ||
| Jacket Thickness | ≥0.85mm | 0.88mm | ||
| Jacket Color | Red | √ | ||
| Printing | As per customer required | |||
| Printing Quality | E/I | E | ||
| Length | 100m | 100m | 100m | |
| Package Type | Wooden Reel | √ | ||
| Package Quality | E/I | E | ||
| Plastic Cups | Y/N | Y | ||
| Reel Marking | Right/Wrong | R | ||
| Reel Size | 10*22*24cm | √ | ||
| Reel Quality | E/I | E | ||
| Carton Size | 23*23*25.5 | √ | ||
| Carton Quality | E/I | E | ||
| Carton Marking | R/W | R | ||
| Label Quality | E/I | E | ||
| Label Place | R/W | R | ||
| Pallet Size | ||||
| Pallet Quality | E/I | |||
| Loading Container | Intact /Damageable | I | ||
| Impedance | Inclosure | |||
| Return Loss | Inclosure | |||
| Attenuation | Inclosure | |||
| Conclusion | Eligibility √ Inferior | |||
–
–
