Description
Category 6 patch panel are designed to exceed TIA/EIA-568-B. 2 component, permanent link and channel level performance specifications providing usable bandwidth beyond155 Mhz, these high-density panels are available in12 through 96 ports versions and feature enhanced front and rear labeling features for easy circuit identification. Category 5e pane Is support both T568A AND T568B wiring configurations using an easy to read color-coded wiring labe.
Panels are constructed for maximum strength and durability and feature a fullyenclosed, 6-port modular design, which provides flexibility and protection of printed circuitry during termination a newly designed RJ-45 contact quick and easy using a 4-pair inline 110 type connector compatible with our category 6 multi-pair impact tool to reduce installation time or an industry standards single position 110 or krone termin al tool Panel include an integrated cable management feature for cable routing and strainrelief requirements. aNoptional cable management bar, which mounts easily to the back of the panel,is available for im proved cable routing and strain relief.
Description:
-

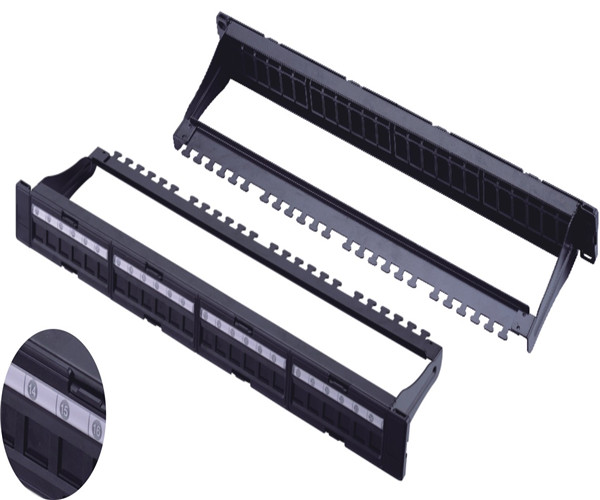

24 Port Cat-6 500 Mhz – Network Patch Panel
-
Unshielded
-
19 inch Rack Mount – 1.75 inch height
-
This panel has 24 RJ-45 connectors on the front that are 180 degree exit (typical panel)
-
110 punch termination on the back.
-
The 110 termination on the back is color coded with 568A and 568B wiring standards for easy installation
-
A simple plastic 110 punch tool is included but may not give you reliable results – We recommend the use of a quality “impact” style 110 punch tool – We sell part number 35-485 for this purpose
-
Always make sure your impact tool is on the “Low Impact” setting for patch panel termination
-
This patch panel is designed for 24 AWG solid conductors and each port has all eight wires loaded for compatibility with all network types
-
Fully backwards compatible with all older networking types
–
–
