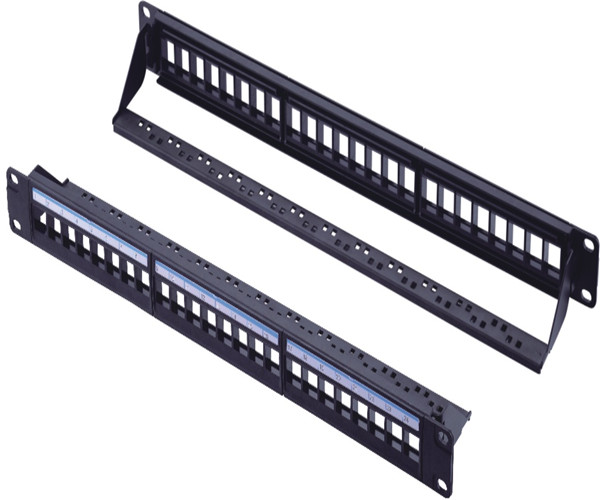

Category 6 patch panel are designed to exceed TIA/EIA-568-B. 2 component, permanent link and channel level performance specifications providing usable bandwidth beyond155 Mhz, these high-density panels are available in12 through 96 ports versions and feature enhanced front and rear labeling features for easy circuit identification. Category 5e pane Is support both T568A AND T568B wiring configurations using an easy to read color-coded wiring labe.
Panels are constructed for maximum strength and durability and feature a fullyenclosed, 6-port modular design, which provides flexibility and protection of printed circuitry during termination a newly designed RJ-45 contact quick and easy using a 4-pair inline 110 type connector compatible with our category 6 multi-pair impact tool to reduce installation time or an industry standards single position 110 or krone termin al tool Panel include an integrated cable management feature for cable routing and strainrelief requirements. aNoptional cable management bar, which mounts easily to the back of the panel,is available for im proved cable routing and strain relief.
Specifications:
☆Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E
Requirements
☆Meet TIA/EIA TSB-40
☆Meet ISO/IEC Generic Cabling Standard 11801
☆Meet CENELEC Generic Cabling Standard
☆EN50173
☆ Angle:180 Degree
Termination: 110 Type＆Krone type
Electrical
☆According to UL1863
☆Current rating: 1.5 Amp Max
☆Voltage rating: 150 Volts
☆Contact resistance: 20 m-ohm
☆Insulation Resistance: 500M-ohm
☆Dielectric Withstand Voltage: 1000V AC RMS
60Hz1min
Materials:
☆Housing:PC UL94V-0
☆IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire
☆PCB: FR4 1.6mm(0.04″)thickness, 2 layers
☆Contact: PC Ul94V-0, 0.45mm(0.018″)Diameter
☆Phosphor bronze with 3″to 50 u”Gold plating
On contact area
