Description

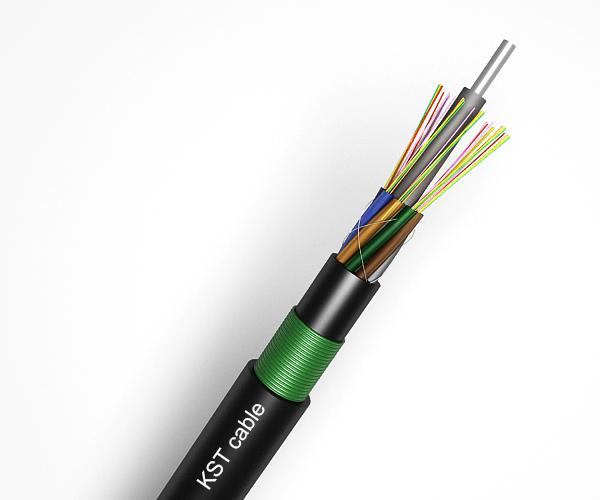

Armored and Double Sheathed Outdoor Calbe（GYTY53）
| 2~42 Core | 44~72 Core | |||||||||
| Application： | |||
| ☆.Adopted to Outdoor distribution. | |||
| ☆.Suitable for aerial duct and buried method. | |||
| ☆.Long distance and local area network communication. |
| Characteristics： | |||||
| ☆.Steel wire strength.filler protect tube fiber.steel tape armord. | |||||
| ☆.Good ultra violet radiation resistant property. | |||||
| ☆.Double sheath .Good moisture-resistance. |
| Technical Parameters: | ||||||||||
| Cable Count | Out sheath Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
||||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | ||
| 24 | 12.0 | 155.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | |
| 36 | 12.0 | 155.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | |
| 42 | 12.0 | 155.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | |
| 48 | 13.0 | 210.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | |
| 60 | 13.0 | 210.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | |
| 72 | 13.0 | 210.00 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40+60 | |
| Denominate: | ||||||||||
 |
GY: | Outdoor Cable | ||||||||
| 无符号: | Metal strength member | |||||||||
| T: | Filling Compound | |||||||||
| Y53: | Out sheath + steel tape+ Out sheath |
|||||||||
| Optical Characteristics | ||||||||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber | ||||||
| A1b:62.5/125 | ||||||||||
| Singlemode | G.652(A、B、C、D） | B1.1:Conventional fiber | ||||||||
| G.653 | B2: Zero dispersion shifted | |||||||||
| G.654 | B1.2 :Cut-off wavelength shifted | |||||||||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber |
|||||||||
–
–
